flex atx
ENP-7660L

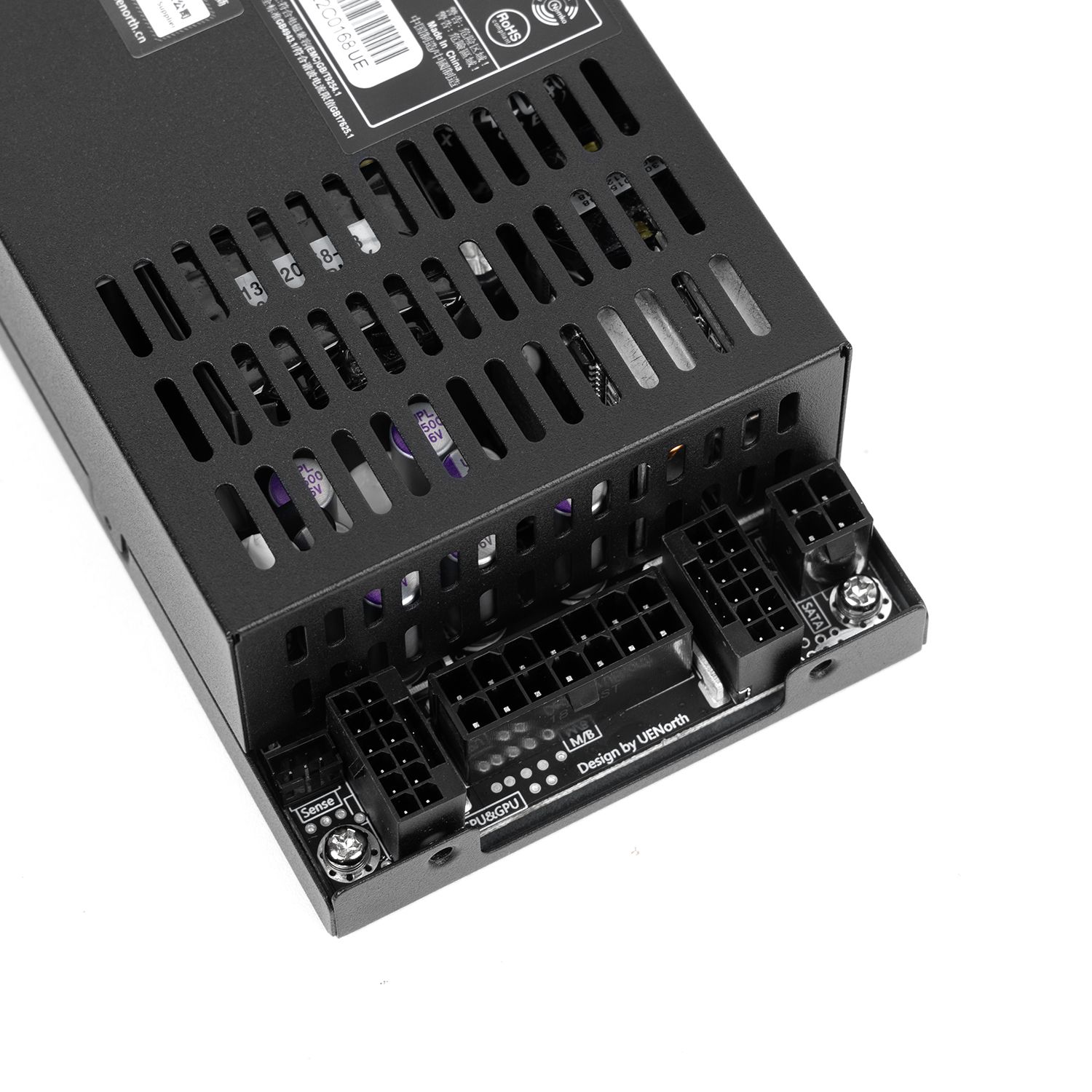

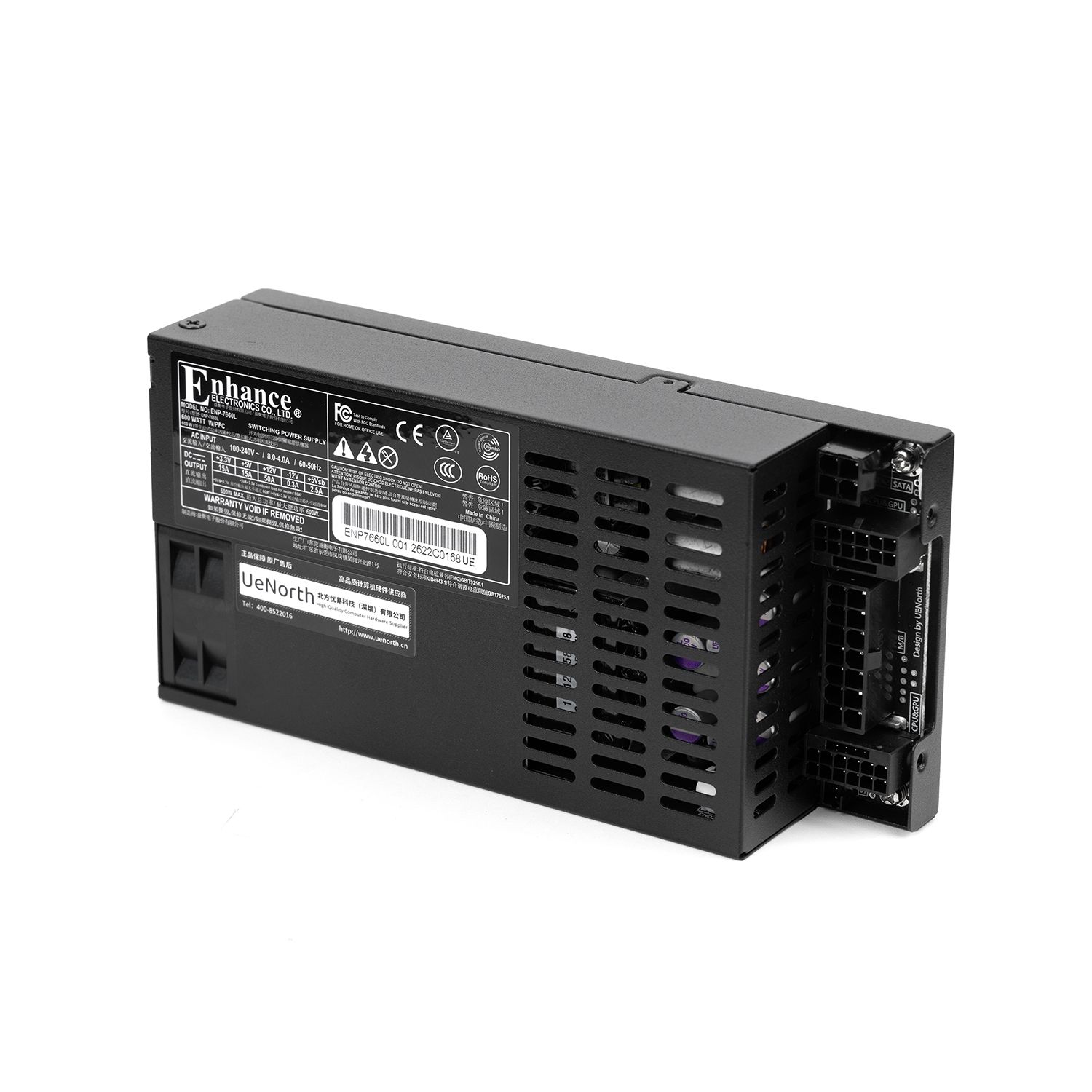

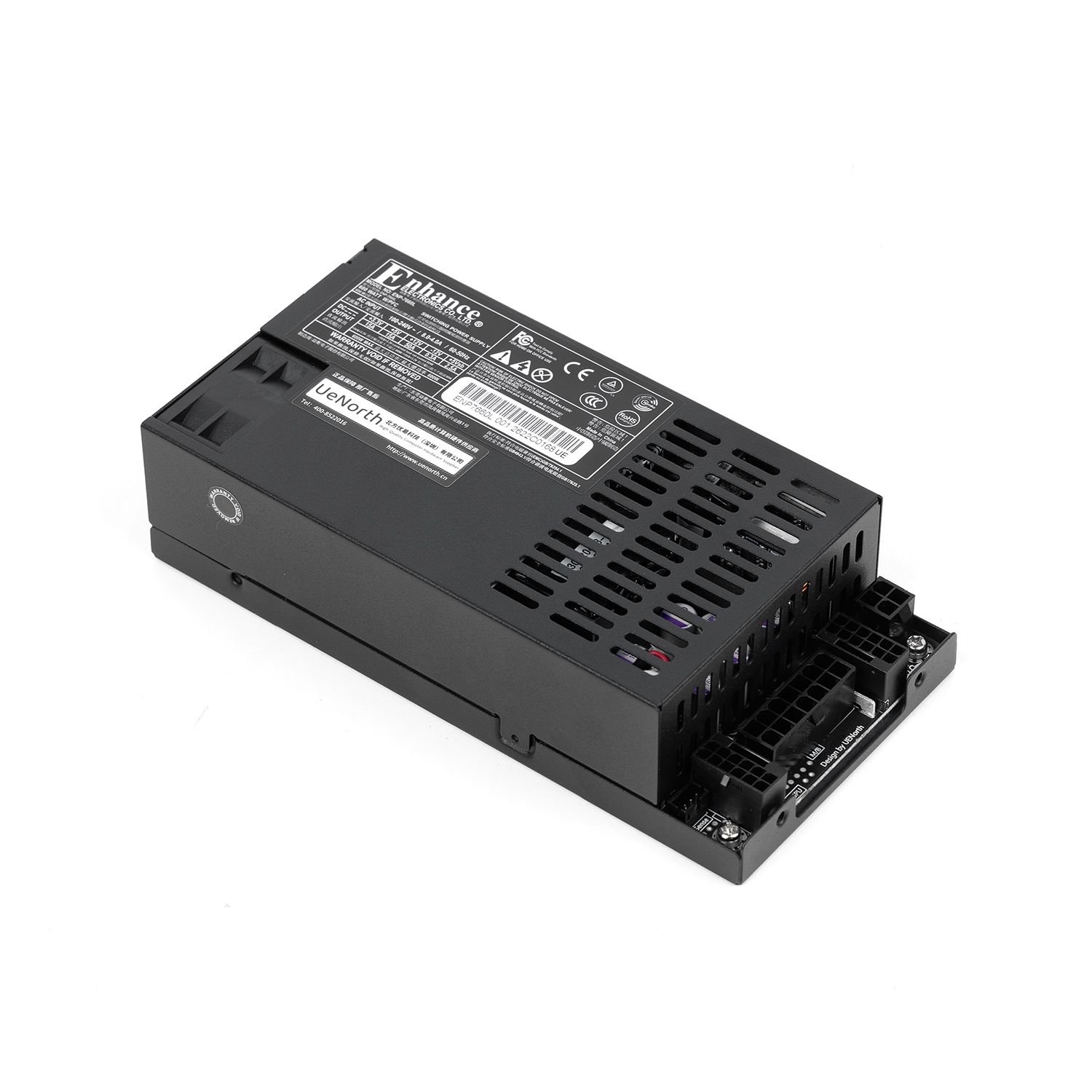

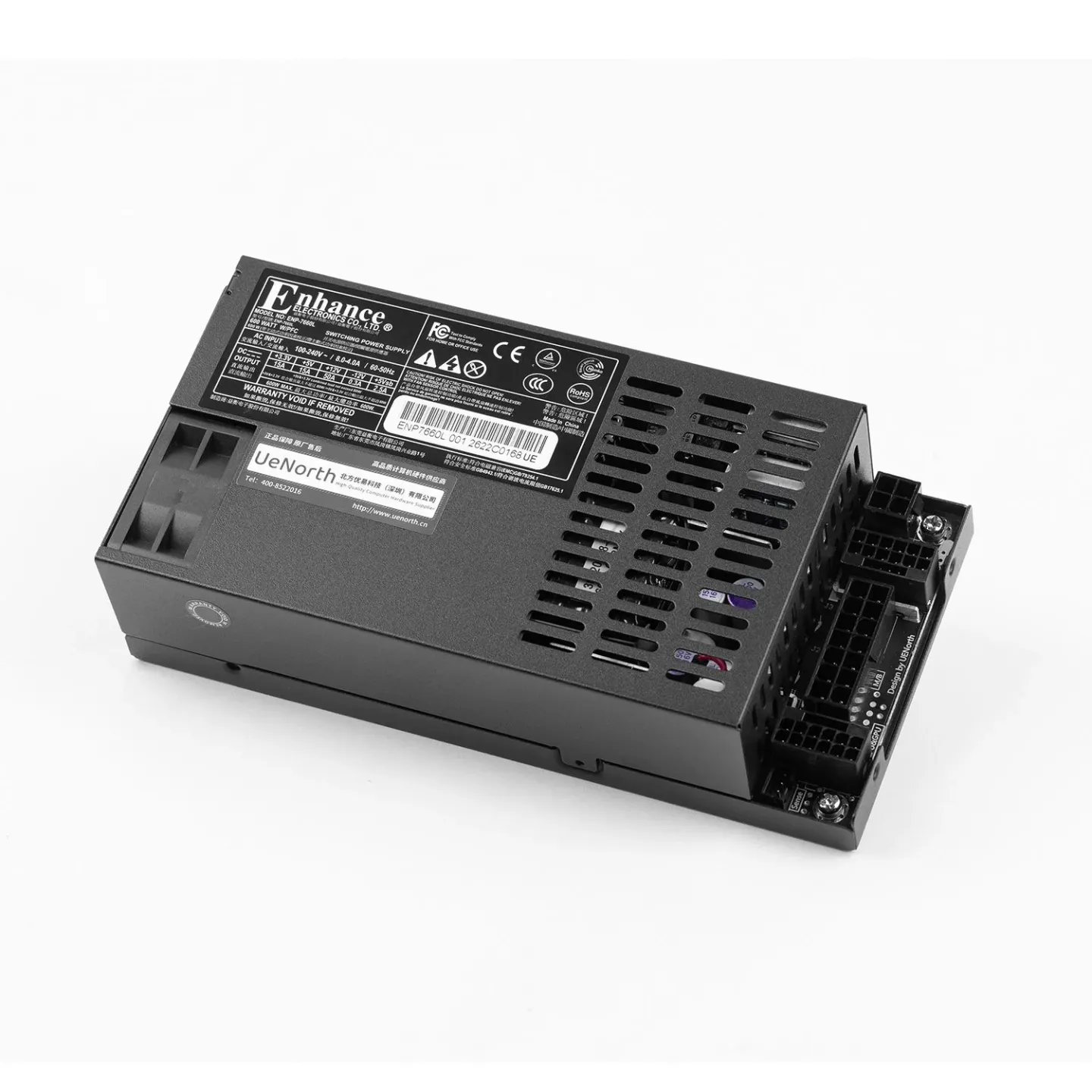

The ENP-7660L is a 600W fully modular Flex-ATX power supply, delivering Platinum-level efficiency, ATX 3.1 & PCIe 5.0 support, and reliable performance in a compact 16.5cm design. Built with premium Japanese capacitors and a fully modular cable design, it provides stable, efficient and dependable power for high-performance SFF PCs, mini workstations, GPU docks and industrial systems.
¥899.00
600W continuous power output with Platinum-level efficiency
ATX 3.1 & PCIe 5.0 compliant

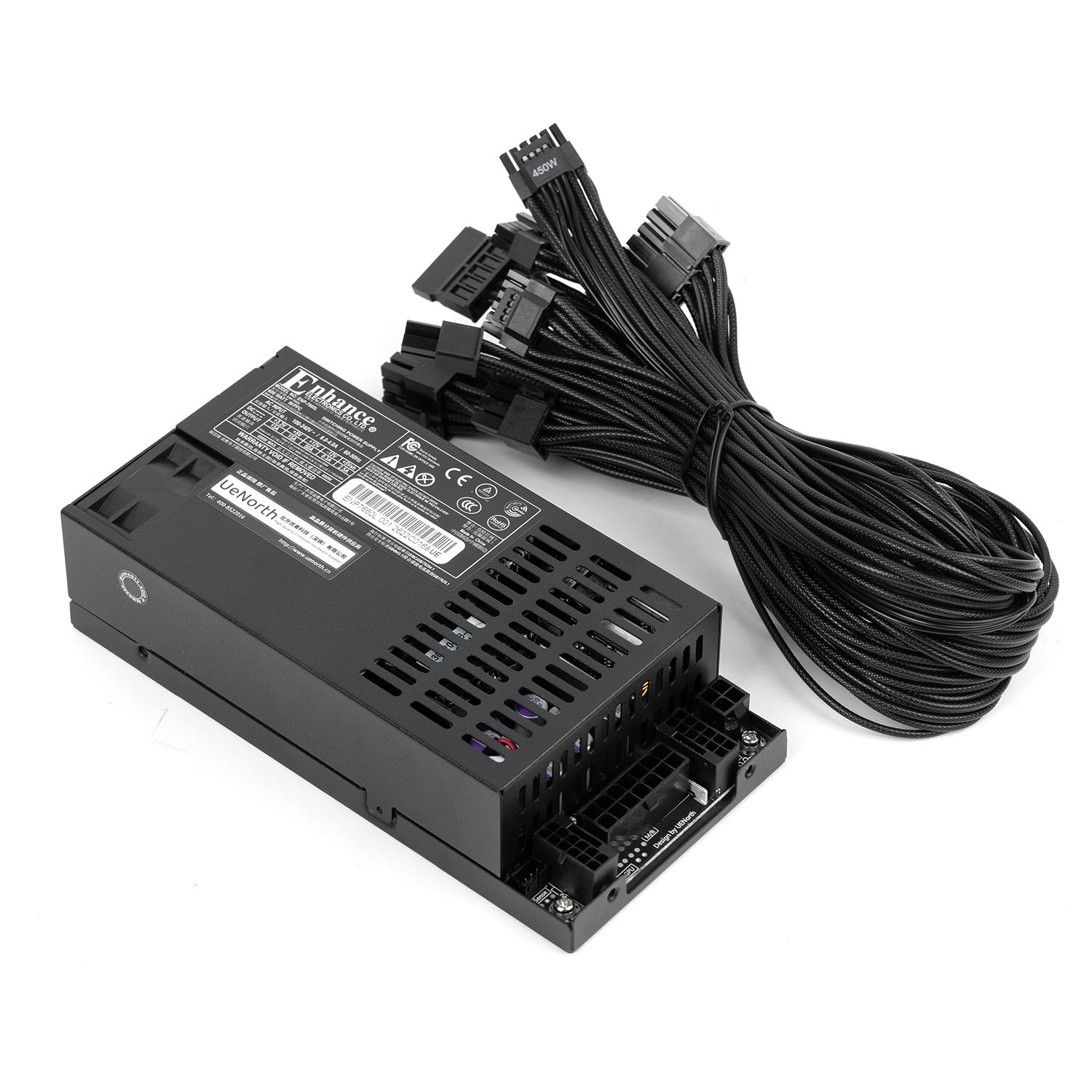

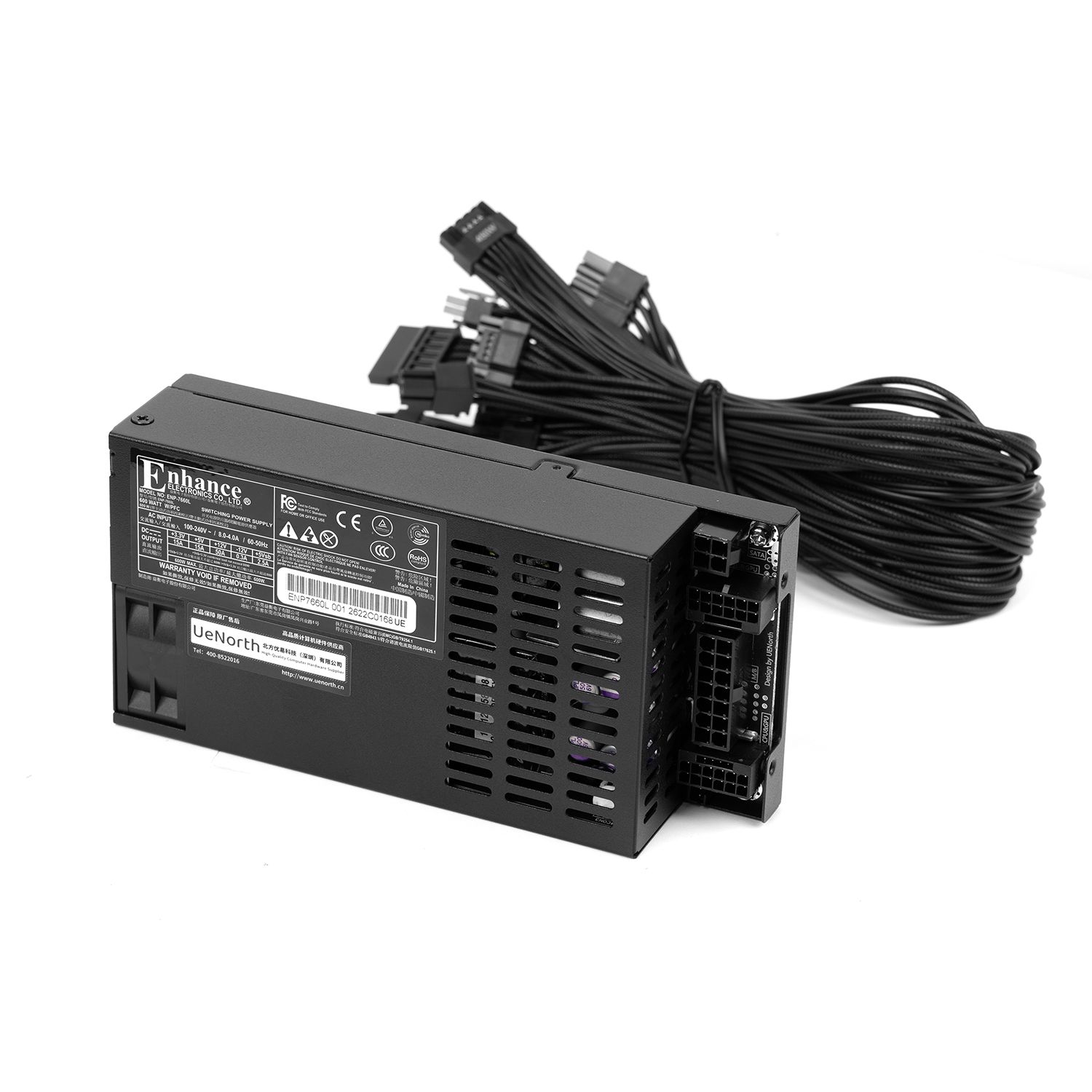

Fully modular cable design
Premium Japanese capacitors
3-5 个工作日发货。7 天无理由退货。 查看物流政策 →
UE QUIET
4/ 5
静音
什么是 UE Quiet？
UE Quiet 是 UENORTH 自研的声学评级体系，综合实测噪音数据与真实听感评估， 更准确地反映用户的实际使用体验。
完整规格
关于 Enhance ENP-7660L 的全部技术参数。
| Model: | ENP-7660L |
| Rated Power: | 600W |
| Size(LWH): | 16.5cm*8.15cm*4.05cm |
| Type: | Flex-ATX |
| Efficiency: | >92% Platinum-Level Efficiency (Not 80 PLUS Certified) |
| Fan: | Honghua Ball Silent Fan |
电源输出
电气参数与直流输出规格。
| AC INPUT | 100-240V ~ / 8-4A / 60-50Hz | ||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5Vsb |
| 15A | 15A | 50A | 0.3A | 2.5A | |
+5V&+3.3V combined load not exceed 80W 600W MAX | |||||
线材长度
线材类型长度
24-pin ATX (20+4)
300mmx1
CPU 8-pin (4+4)
350mmx1
SATA
350 + 150mmx1
PCIe 8-pin (6+2)
350mmx1
12V-2×6 (12+4)
350mmx1
- Note: Two GPU cable options are included for compatibility with different graphics cards. Use either the PCIe 8-pin(6+2) or the 12V2x6(12+4) cable.
- Do not use both at the same time.
